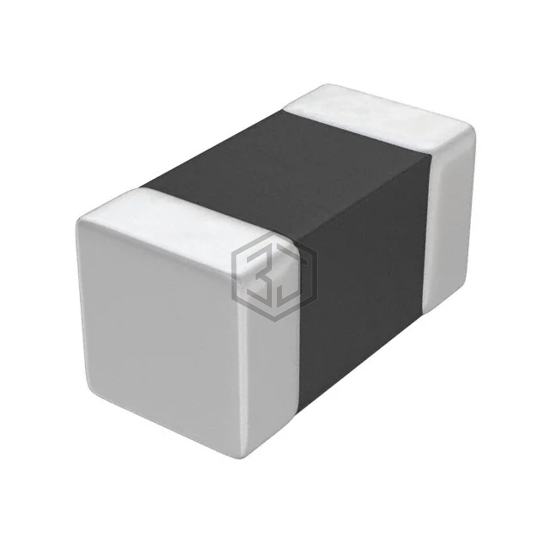

FIXED IND 330NH 300MA 600MOHM SM
LQB15NNR33M10D is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 330NH 300MA 600MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 300 mA.
In Stock: 18,832
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 600mOhm Max |
| Q @ Freq | 10 @ 25MHz |
| Frequency - Self Resonant | 80MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
Submit your RFQ for LQB15NNR33M10D and get a quote within 24 hours.
