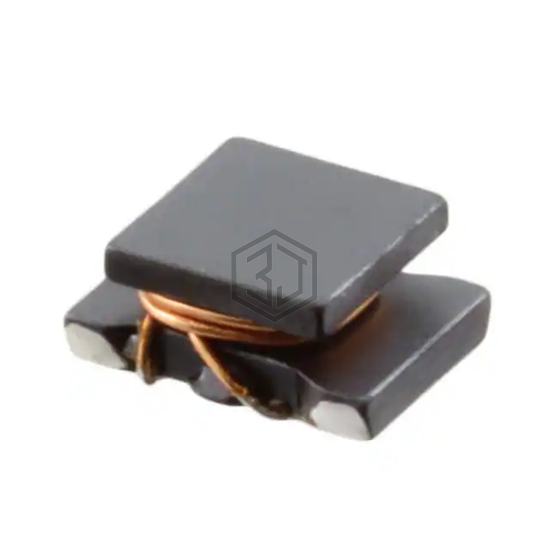

CMC 4A 2LN 45 OHM SMD AEC-Q200
DLW5ATH450TQ2L is a Common Mode Chokes manufactured by Murata Electronics. CMC 4A 2LN 45 OHM SMD AEC-Q200. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage rating - dc 50V, package / case Horizontal, 4 PC Pad.
In Stock: 634
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power, Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 45 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 4A |
| DC Resistance (DCR) (Max) | 13mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.197" L x 0.142" W (5.00mm x 3.60mm) |
| Height (Max) | 0.093" (2.35mm) |
| Package / Case | Horizontal, 4 PC Pad |
Submit your RFQ for DLW5ATH450TQ2L and get a quote within 24 hours.
