FIXED IND 6.8UH 9A 14 MOHM SMD

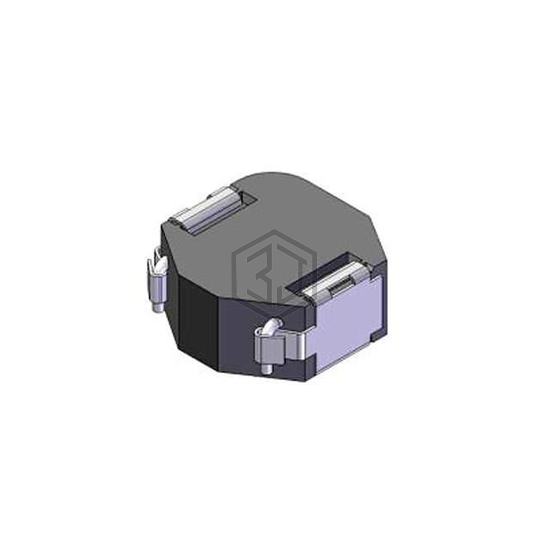

DFEH12060D-6R8M=P3 is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 6.8UH 9A 14 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case Nonstandard, current rating (amps) 9 A.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9 A |
| Current - Saturation (Isat) | 11A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.496" W (13.00mm x 12.60mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for DFEH12060D-6R8M=P3 and get a quote within 24 hours.
