FIXED IND 1.5UH 3.4A 31 MOHM SMD

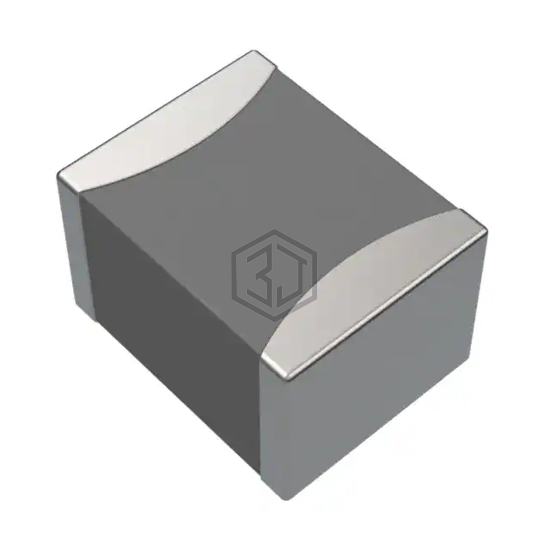

DFE322520FD-1R5M=P2 is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 1.5UH 3.4A 31 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1210 (3225 Metric), current rating (amps) 3.4 A.
In Stock: 1,630
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.4 A |
| Current - Saturation (Isat) | 6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 31mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for DFE322520FD-1R5M=P2 and get a quote within 24 hours.
