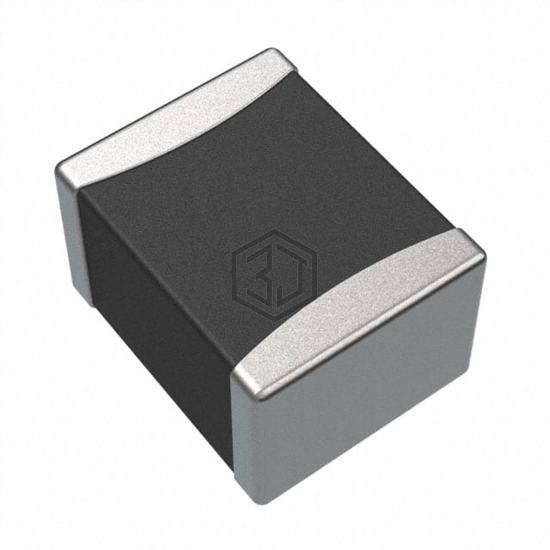

FIXED IND 150NH 4.8A 21 MOHM SMD
DFE2MCAHR15MJ0L is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 150NH 4.8A 21 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 0806 (2016 Metric), current rating (amps) 4.8 A.
In Stock: 3,018
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.8 A |
| Current - Saturation (Isat) | 6.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 21mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for DFE2MCAHR15MJ0L and get a quote within 24 hours.
