FIXED IND 0.24UH 6500MA NONAUTO

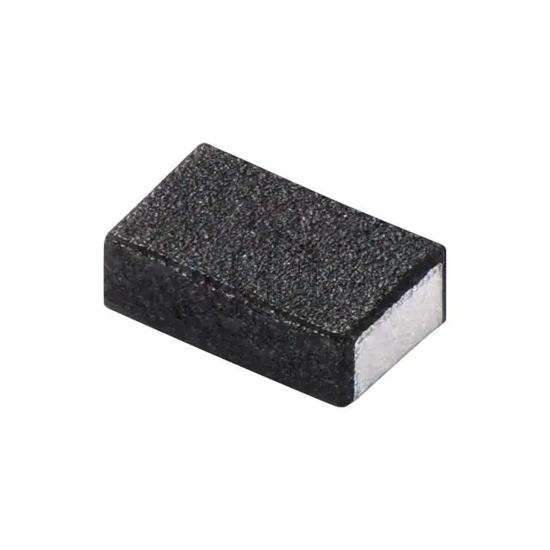

DFE21CCNR24MELL is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 0.24UH 6500MA NONAUTO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 5.2 A.
In Stock: 1,940
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 240 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.2 A |
| Current - Saturation (Isat) | 6.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
