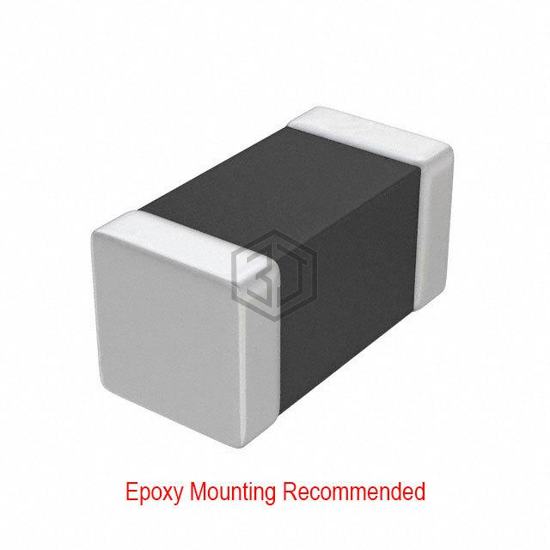

FB SMD 0603INCH 1000OHM POWRTRNA
BLM18KG102WH1D is a Ferrite Beads and Chips manufactured by Murata Electronics. FB SMD 0603INCH 1000OHM POWRTRNA. Key specifications: mounting type Surface Mount, Epoxy, operating temperature -55°C ~ 150°C, package / case 0603 (1608 Metric), size / dimension 0.063" L x 0.031" W (1.60mm x 0.80mm).
In Stock: 3,007
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
| Current Rating (Max) | 800mA |
| DC Resistance (DCR) (Max) | 230mOhm |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount, Epoxy |
| Height (Max) | 0.037" (0.95mm) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Features | - |
Submit your RFQ for BLM18KG102WH1D and get a quote within 24 hours.
