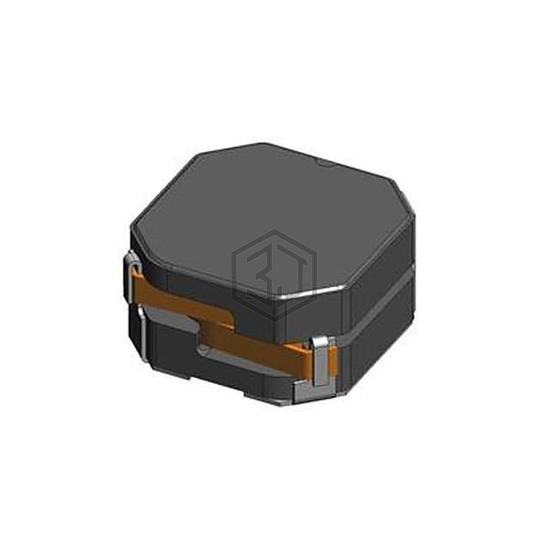

FIXED IND 4.7UH 6.7A 13.5MOHM SM
1274AS-H-4R7N=P3 is a Fixed Inductors manufactured by Murata Electronics. FIXED IND 4.7UH 6.7A 13.5MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 6.7 A, size / dimension 0.394" L x 0.394" W (10.00mm x 10.00mm).
In Stock: 5,038
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 6.7 A |
| Current - Saturation (Isat) | 9.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 1274AS-H-4R7N=P3 and get a quote within 24 hours.
