DOUBLE PB-2B-LED-GREEN&RED-<STAR

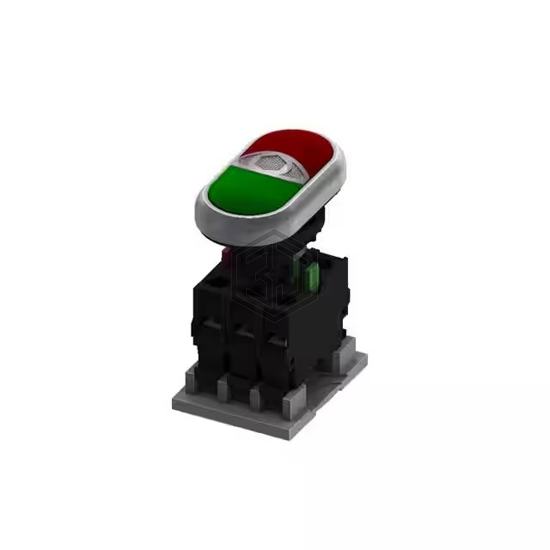

M22DP-SB02-E30-GR-<START,STOP> is a Pushbutton Switches manufactured by Moujen. DOUBLE PB-2B-LED-GREEN&RED-<STAR. Key specifications: mounting type Panel Mount, Front, operating temperature -25°C ~ 70°C, voltage rating - dc 24 V, current rating (amps) 6A (AC), 3A (DC).
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Standard, Illuminated |
| Circuit | SPST |
| Switch Function | - |
| Current Rating (Amps) | 6A (AC), 3A (DC) |
| Voltage Rating - AC | 230 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round, Button, Dual |
| Actuator Marking | START/STOP (Alternating) |
| Color - Actuator/Cap | Green, Red |
| Illumination Type, Color | LED, White |
| Illumination Voltage (Nominal) | 12 ~ 30 VAC/DC |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Features | - |
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
| Operating Temperature | -25°C ~ 70°C |
Submit your RFQ for M22DP-SB02-E30-GR-<START,STOP> and get a quote within 24 hours.
