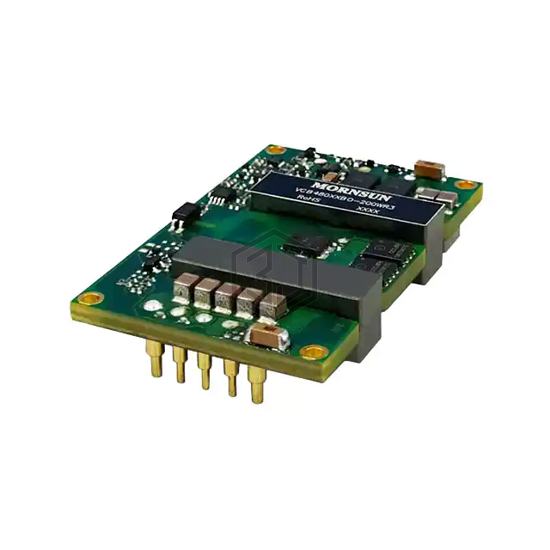

DC DC CONVERTER, 200W, 24V
VCB4824QBO-200WR3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER, 200W, 24V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C (With Derating), package / case Quarter Brick, current - output (max) 8.33A.
In Stock: 4,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8.33A |
| Power (Watts) | 200 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote Sense |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 92% |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.40" H (57.9mm x 36.8mm x 10.1mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for VCB4824QBO-200WR3 and get a quote within 24 hours.
