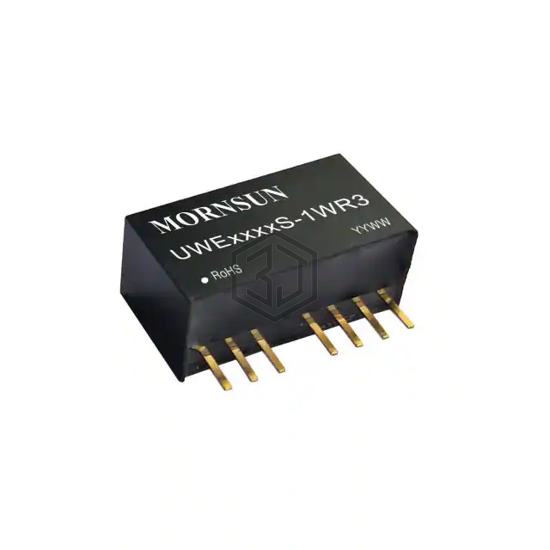

DC DC CONVERTER,3W,15VDC
UWE1215S-3WR3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER,3W,15VDC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 8-SIP Module, 7 Leads, current - output (max) 100mA, 100mA.
In Stock: 9,062
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 79% |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for UWE1215S-3WR3 and get a quote within 24 hours.
