DC/DC CONVERTER 15V 20/-5.0V 2.2

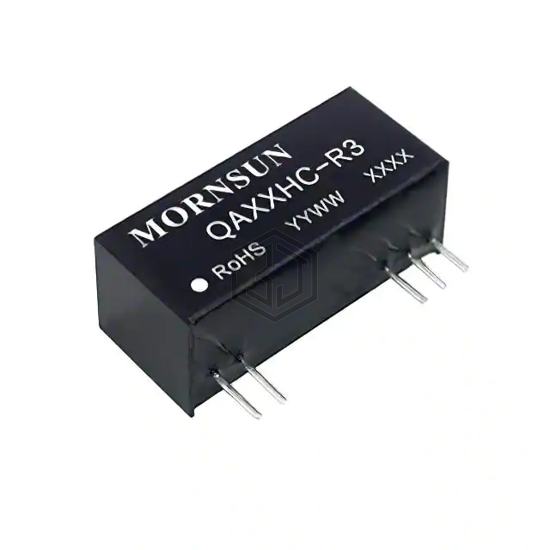

QA153HC-2005R3 is a DC DC Converters manufactured by Mornsun America, LLC. DC/DC CONVERTER 15V 20/-5.0V 2.2. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 10-SIP Module, 5 Leads, current - output (max) 90mA, 90mA.
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 20V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 90mA, 90mA |
| Power (Watts) | - |
| Voltage - Isolation | 5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 87% |
| Mounting Type | Through Hole |
| Package / Case | 10-SIP Module, 5 Leads |
| Size / Dimension | 1.08" L x 0.37" W x 0.47" H (27.4mm x 9.5mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for QA153HC-2005R3 and get a quote within 24 hours.
