DC DC CONVERTER FOR SIC DRIVER,+

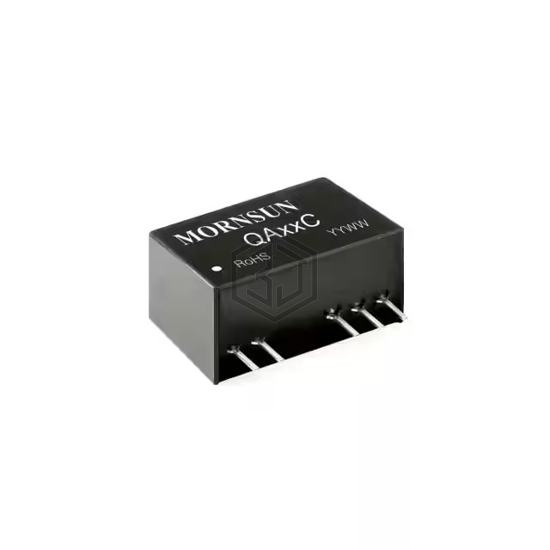

QA01C is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER FOR SIC DRIVER,+. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 7-SIP Module, 5 Leads, current - output (max) 100mA, 100mA.
In Stock: 285
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 20V |
| Voltage - Output 2 | -4V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | - |
| Voltage - Isolation | 6 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus |
| Standard Number | 60950-1 |
Submit your RFQ for QA01C and get a quote within 24 hours.
