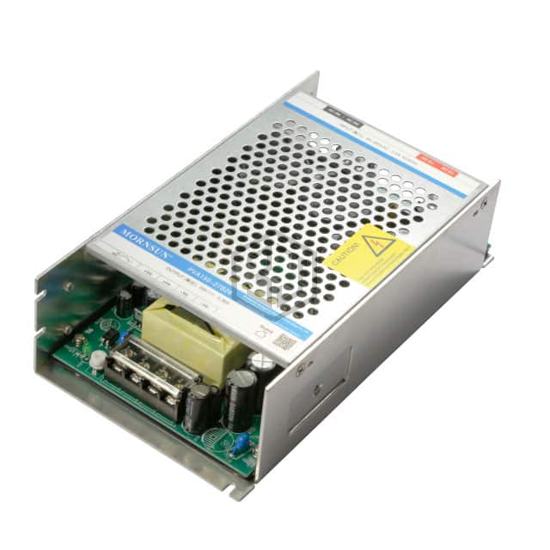

AC/DC CONVERTER 24V 150W
PVA150-27B24 is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 24V 150W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C (With Derating), voltage - input 85 ~ 900 VAC, size / dimension 7.84" L x 4.33" W x 2.17" H (199.0mm x 110.0mm x 55.0mm).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 900 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 6.25 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 150W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 87% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.84" L x 4.33" W x 2.17" H (199.0mm x 110.0mm x 55.0mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PVA150-27B24 and get a quote within 24 hours.
