DC/DC CONVERTER 15V 40W

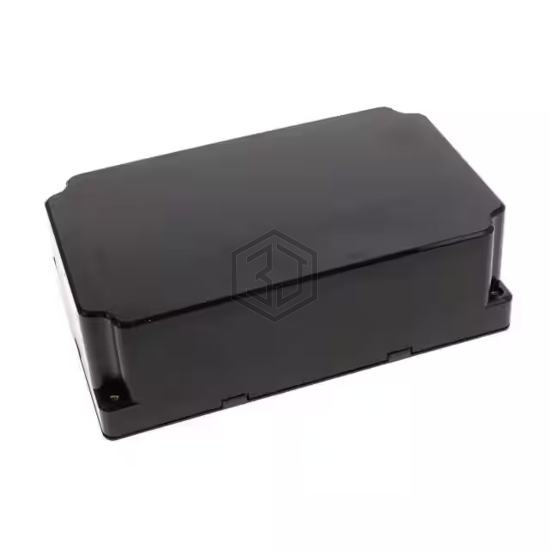

PV40-29B15 is a DC DC Converters manufactured by Mornsun America, LLC. DC/DC CONVERTER 15V 40W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 2.67A, size / dimension 4.92" L x 2.95" W x 1.57" H (125.0mm x 75.0mm x 40.0mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 200V |
| Voltage - Input (Max) | 1500V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.67A |
| Power (Watts) | 40W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 82% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.92" L x 2.95" W x 1.57" H (125.0mm x 75.0mm x 40.0mm) |
| Approval Agency | CE, CSA, cURus |
| Standard Number | - |
