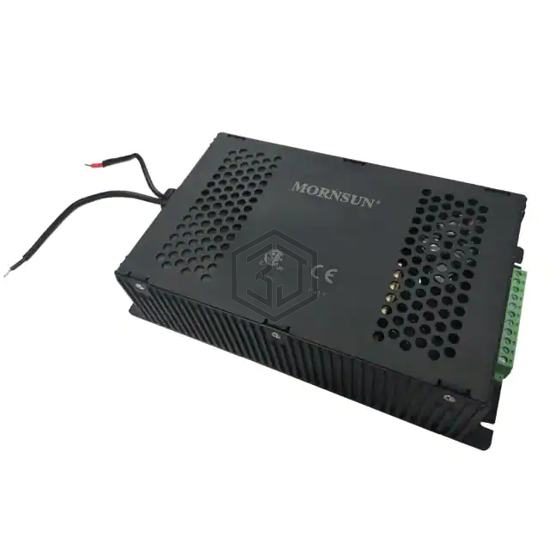

DC/DC CONVERTER 48V 202W
PV200-29B48 is a DC DC Converters manufactured by Mornsun America, LLC. DC/DC CONVERTER 48V 202W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 4.2A, size / dimension 8.47" L x 4.92" W x 1.97" H (215.0mm x 125.0mm x 50.0mm).
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 300V |
| Voltage - Input (Max) | 1500V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 202W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.47" L x 4.92" W x 1.97" H (215.0mm x 125.0mm x 50.0mm) |
| Approval Agency | CE, cCSAus |
| Standard Number | - |
Submit your RFQ for PV200-29B48 and get a quote within 24 hours.
