DC/DC CONVERTER 24V 150W

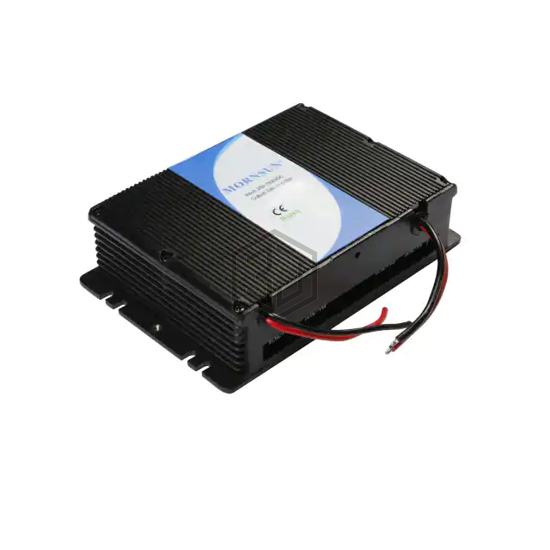

PV150-29B24 is a DC DC Converters manufactured by Mornsun America, LLC. DC/DC CONVERTER 24V 150W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 6.25A, size / dimension 6.61" L x 4.38" W x 1.67" H (168.0mm x 111.2mm x 42.5mm).
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 250V |
| Voltage - Input (Max) | 1500V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6.25A |
| Power (Watts) | 150W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.61" L x 4.38" W x 1.67" H (168.0mm x 111.2mm x 42.5mm) |
| Approval Agency | CE |
| Standard Number | - |
