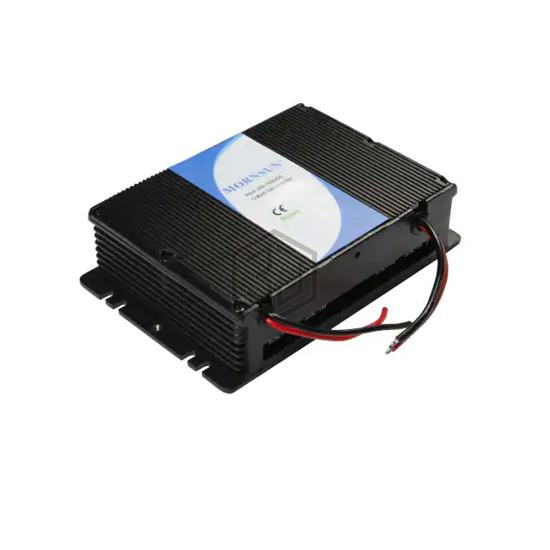

DC/DC CONVERTER 12V 120W
PV150-29B12 is a DC DC Converters manufactured by Mornsun America, LLC. DC/DC CONVERTER 12V 120W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 8.07" L x 4.92" W x 1.97" H (205.0mm x 125.0mm x 50.0mm).
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 250V |
| Voltage - Input (Max) | 1500V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 120W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 84% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.07" L x 4.92" W x 1.97" H (205.0mm x 125.0mm x 50.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for PV150-29B12 and get a quote within 24 hours.
