DC DC CONVERTER,1W,12VDC

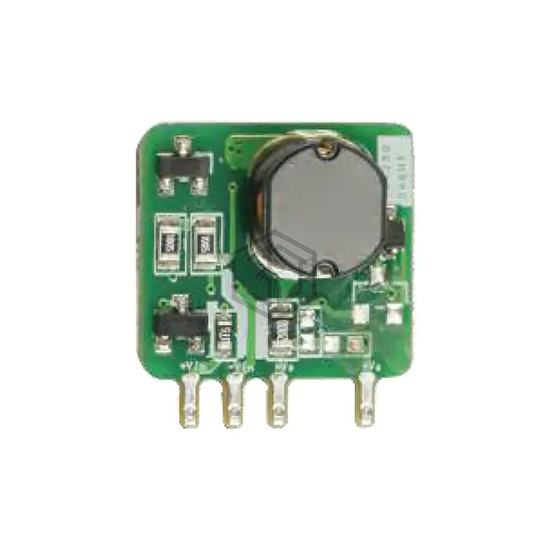

LSF01-K5B12SS is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER,1W,12VDC. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (With Derating), package / case 4-SIP Module, current - output (max) 83mA.
In Stock: 228
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 15V |
| Voltage - Input (Max) | 380V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 83mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -25°C ~ 85°C (With Derating) |
| Efficiency | 70% |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.62" L x 0.35" W x 0.57" H (15.7mm x 9.0mm x 14.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for LSF01-K5B12SS and get a quote within 24 hours.
