AC/DC CONVERTER 18V 5W

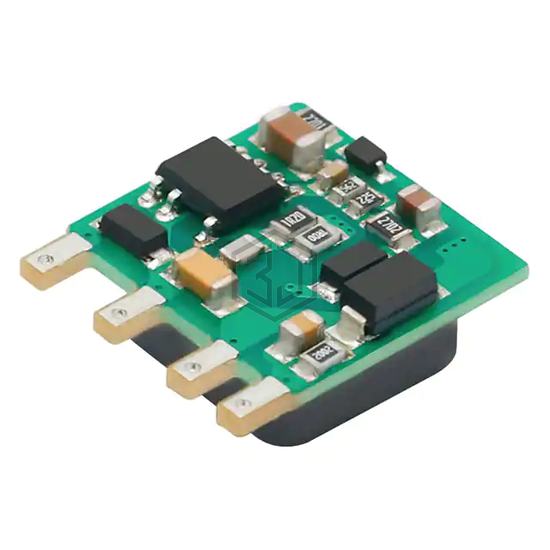

LS05-K3B18SS is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 18V 5W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 305 VAC, 70 ~ 430 VDC, package / case 4-SIP Module.
In Stock: 9,849
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 70 ~ 430 VDC |
| Voltage - Output 1 | 18V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 280mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 77% |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.64" L x 0.37" W x 0.72" H (16.1mm x 9.5mm x 18.2mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for LS05-K3B18SS and get a quote within 24 hours.
