AC/DC CONVERTER 5V 3W

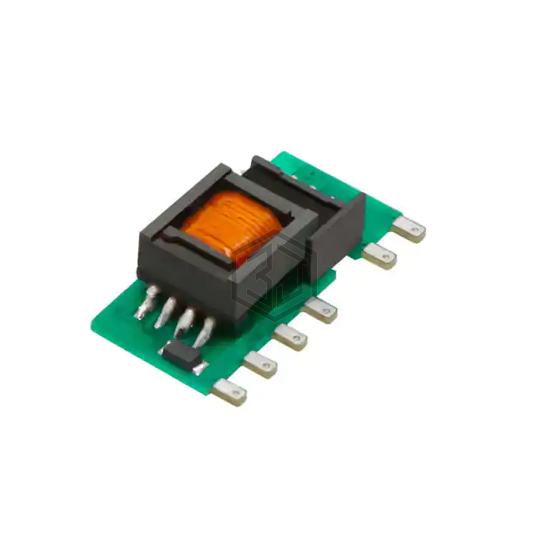

LS03-13B05R3 is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 5V 3W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 305 VAC, 70 ~ 430 VDC, package / case 6-SIP Module.
In Stock: 5,528
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 70 ~ 430 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 600mA |
| Power (Watts) | 3 W |
| Applications | Household Appliances, ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 72% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Size / Dimension | 1.04" L x 0.43" W x 0.50" H (26.4mm x 11.0mm x 12.6mm) |
| Approval Agency | CB, CE, cURus |
| Standard Number | - |
Submit your RFQ for LS03-13B05R3 and get a quote within 24 hours.
