AC DC CONVERTER 48V 312W

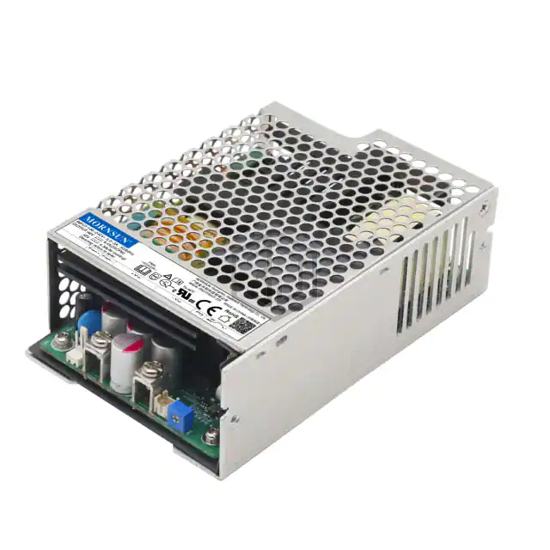

LOF550-20B48-C is a AC DC Converters manufactured by Mornsun America, LLC. AC DC CONVERTER 48V 312W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 5.11" L x 3.39" W x 1.69" H (129.8mm x 86.1mm x 42.9mm).
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 11.46 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 312W (550W Forced Air) |
| Applications | Household Appliances, ITE (Commercial), Laboratory |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.11" L x 3.39" W x 1.69" H (129.8mm x 86.1mm x 42.9mm) |
| Approval Agency | CE, cURus, UL |
| Standard Number | 60335-1; 60601-1; 62368-1 |
Submit your RFQ for LOF550-20B48-C and get a quote within 24 hours.
