AC DC CONVERTER 24V 322W

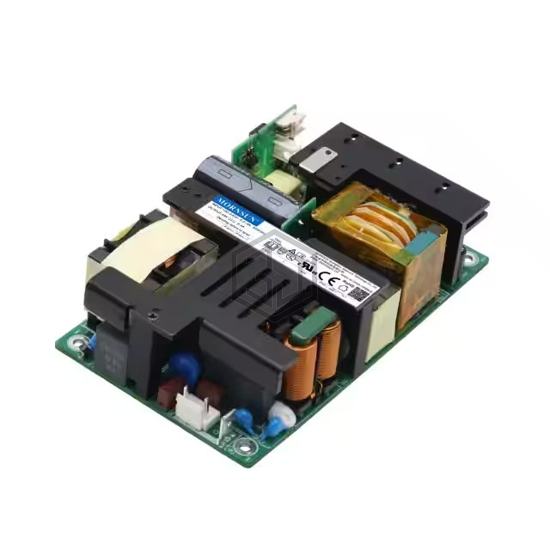

LOF550-20B24 is a AC DC Converters manufactured by Mornsun America, LLC. AC DC CONVERTER 24V 322W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 5.00" L x 3.00" W x 1.59" H (127.0mm x 76.2mm x 40.5mm).
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 22.9 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 322W (550W Forced Air) |
| Applications | Household Appliances, ITE (Commercial), Laboratory |
| Voltage - Isolation | 400 V |
| Efficiency | 93% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.59" H (127.0mm x 76.2mm x 40.5mm) |
| Approval Agency | CE, cURus, UL |
| Standard Number | 60335-1; 60601-1; 62368-1 |
Submit your RFQ for LOF550-20B24 and get a quote within 24 hours.
