AC/DC CONVERTER 27V 130W

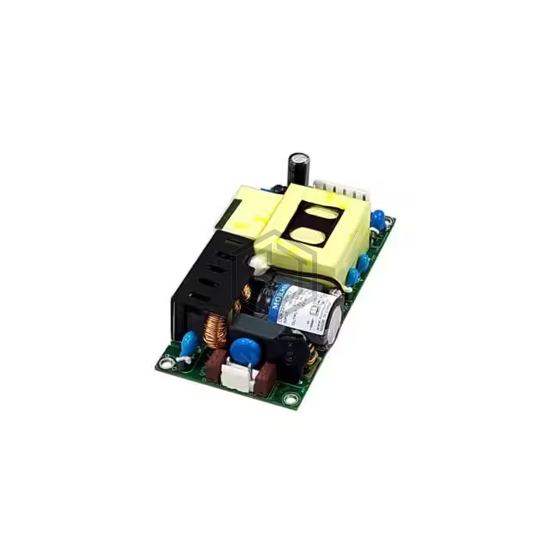

LOF225-20B27 is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 27V 130W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm).
In Stock: 279
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 27V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.81 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 130W |
| Applications | Household Appliances, ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
| Approval Agency | CE, cURus |
| Standard Number | 60335-1; 60601-1; 62368-1 |
Submit your RFQ for LOF225-20B27 and get a quote within 24 hours.
