AC/DC CONVERTER 24V 120W

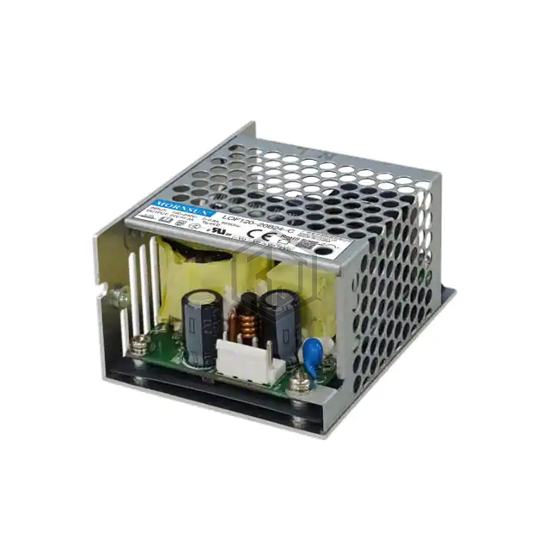

LOF120-20B24-C is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 24V 120W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm).
In Stock: 69
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 120W |
| Applications | Household Appliances, ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 95% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Adjustable Output, PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) |
| Approval Agency | CE, cURus |
| Standard Number | 60335-1; 60601-1; 62368-1 |
Submit your RFQ for LOF120-20B24-C and get a quote within 24 hours.
