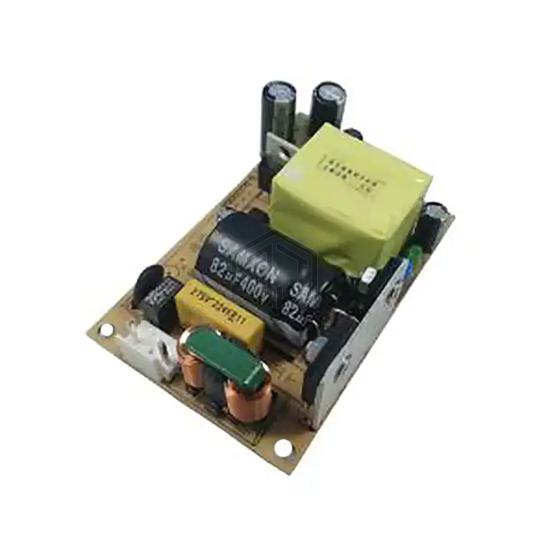

AC/DC CONVERTER 9V 59W
LO65-10B09 is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 9V 59W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, 100 ~ 370 VDC, size / dimension 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 100 ~ 370 VDC |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 6.6 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 59W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 83% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
| Approval Agency | CB, CE, cURus |
| Standard Number | 62368-1 |
Submit your RFQ for LO65-10B09 and get a quote within 24 hours.
