AC/DC CONVERTER 9V 10W

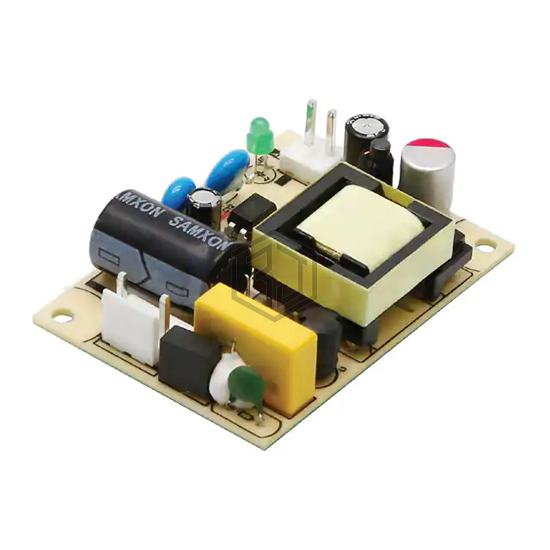

LO10-13B09 is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 9V 10W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C (With Derating), voltage - input 85 ~ 305 VAC, 100 ~ 430 VDC, size / dimension 2.36" L x 1.65" W x 0.64" H (60.0mm x 42.0mm x 16.3mm).
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.1 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 10W |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 79% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.36" L x 1.65" W x 0.64" H (60.0mm x 42.0mm x 16.3mm) |
| Approval Agency | - |
| Standard Number | 60335-1; 62368-1 |
