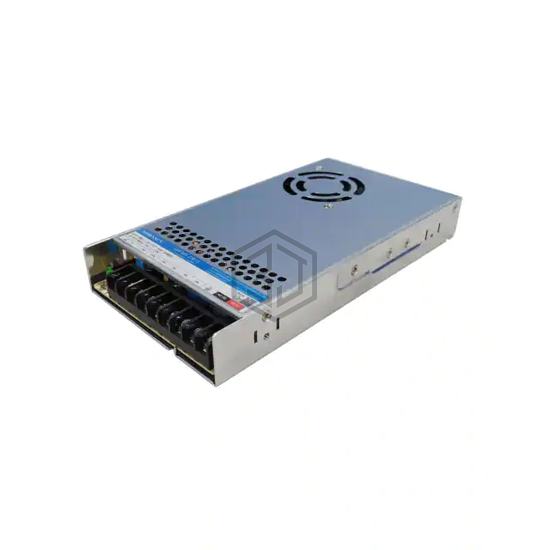

AC/DC CONVERTER 48V 322W
LMF320-23B48 is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 48V 322W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 85 ~ 305 VAC, 100 ~ 430 VDC, size / dimension 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm).
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 6.7 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 322W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 89% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for LMF320-23B48 and get a quote within 24 hours.
