AC/DC CONVERTER 15V 600W

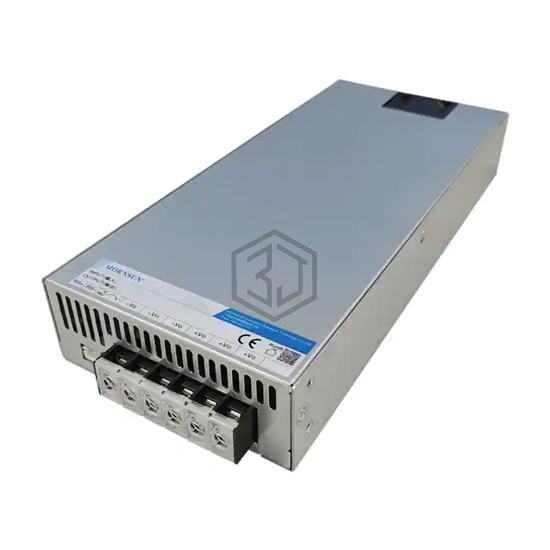

LM600-12B15 is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 15V 600W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 60°C (With Derating), voltage - input 176 ~ 264 VAC, 240 ~ 373 VDC, size / dimension 10.52" L x 4.17" W x 1.58" H (267.3mm x 106.0mm x 40.0mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 176 ~ 264 VAC, 240 ~ 373 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 40 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 600W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 86% |
| Operating Temperature | -30°C ~ 60°C (With Derating) |
| Features | Adjustable Output, Remote Sense |
| Mounting Type | Chassis Mount |
| Size / Dimension | 10.52" L x 4.17" W x 1.58" H (267.3mm x 106.0mm x 40.0mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for LM600-12B15 and get a quote within 24 hours.
