AC/DC CONVERTER 48V 30W

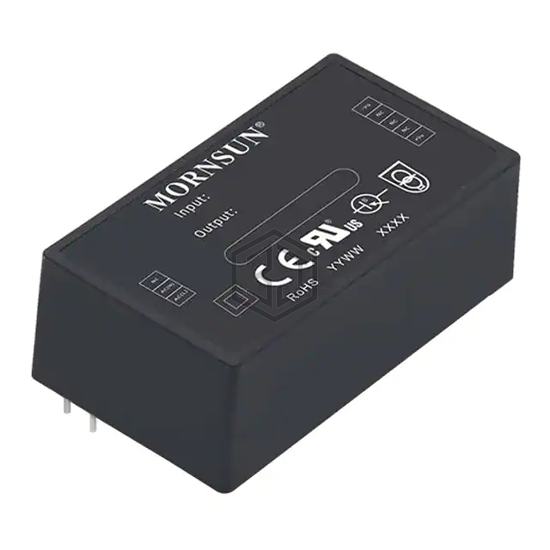

LD30-23B48R2 is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 48V 30W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 305 VAC, 100 ~ 430 VDC, package / case 4-DIP Module.
In Stock: 46
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 630mA |
| Power (Watts) | 30 W |
| Applications | Household Appliances, ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 90% |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP Module |
| Size / Dimension | 2.74" L x 1.54" W x 0.94" H (69.5mm x 39.0mm x 24.0mm) |
| Approval Agency | - |
| Standard Number | 60335-1; 62368-1 |
