AC/DC CONVERTER 3.3V 13W

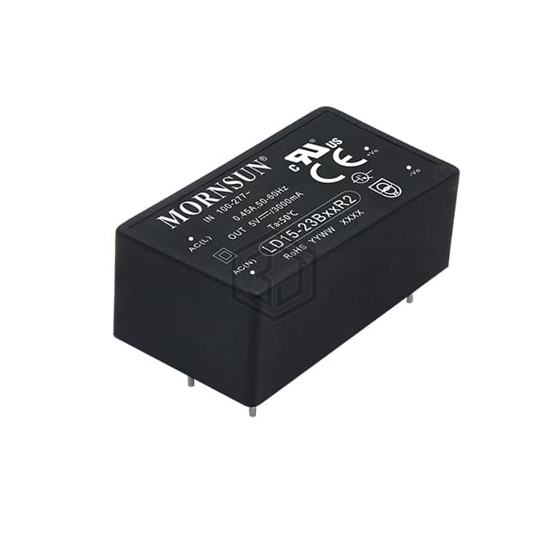

LD15-23B03R2 is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 3.3V 13W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 305 VAC, 100 ~ 430 VDC, package / case 5-DIP Module, 4 Leads.
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 13 W |
| Applications | Household Appliances, ITE (Commercial), Medical |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module, 4 Leads |
| Size / Dimension | 1.87" L x 1.06" W x 0.93" H (47.6mm x 26.8mm x 23.5mm) |
| Approval Agency | CB, CE, cURus, UL |
| Standard Number | - |
Submit your RFQ for LD15-23B03R2 and get a quote within 24 hours.
