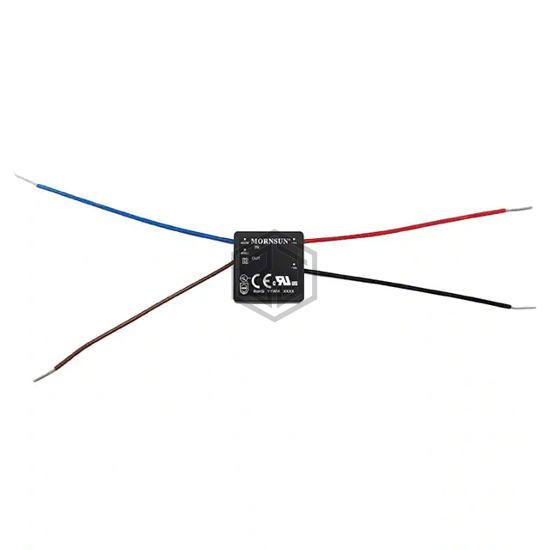

AC/DC CONVERTER 9V 3W
LD03-23B09WR2 is a AC DC Converters manufactured by Mornsun America, LLC. AC/DC CONVERTER 9V 3W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 305 VAC, 100 ~ 430 VDC, size / dimension 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm).
In Stock: 58
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 333 mA |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 3W |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 78% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Size / Dimension | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) |
| Approval Agency | CB, CE, cURus, UL |
| Standard Number | 60335-1; 62368-1 |
Submit your RFQ for LD03-23B09WR2 and get a quote within 24 hours.
