DC DC CONVERTER 6.5V 20W

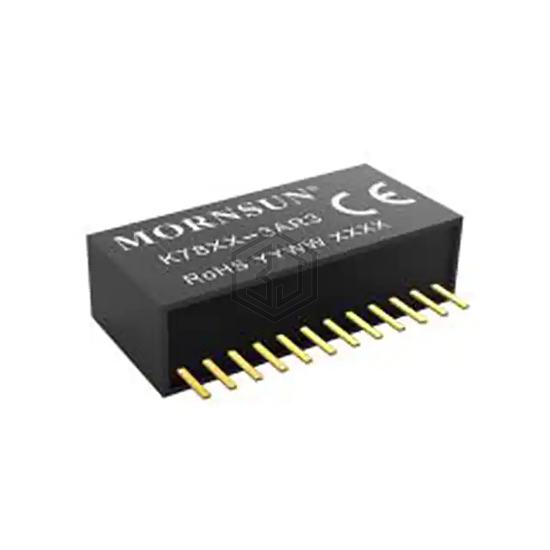

K78X6-3AR3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER 6.5V 20W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 12-SIP Module, current - output (max) 3A.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 6.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | 20 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module |
| Size / Dimension | 1.27" L x 0.36" W x 0.58" H (32.2mm x 9.1mm x 14.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for K78X6-3AR3 and get a quote within 24 hours.
