DC DC CONVERTER 15V

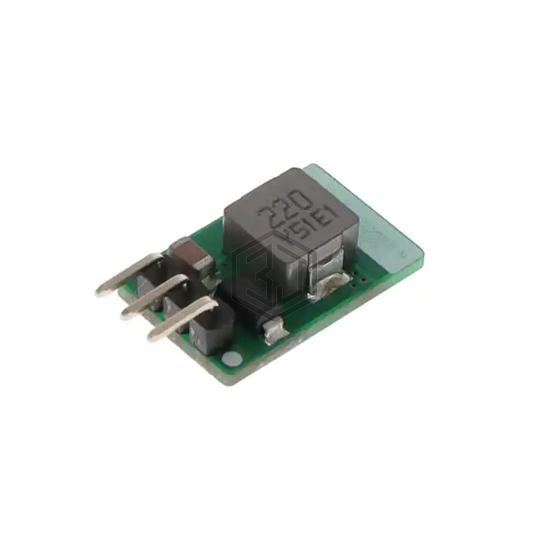

K78L15-1000R3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER 15V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 3-SIP Module, current - output (max) 1A, 300mA.
In Stock: 374
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 8V, 20V |
| Voltage - Input (Max) | 18V, 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A, 300mA |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 96% |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.45" L x 0.30" W x 0.69" H (11.5mm x 7.5mm x 17.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for K78L15-1000R3 and get a quote within 24 hours.
