DC DC CONVERTER 5V

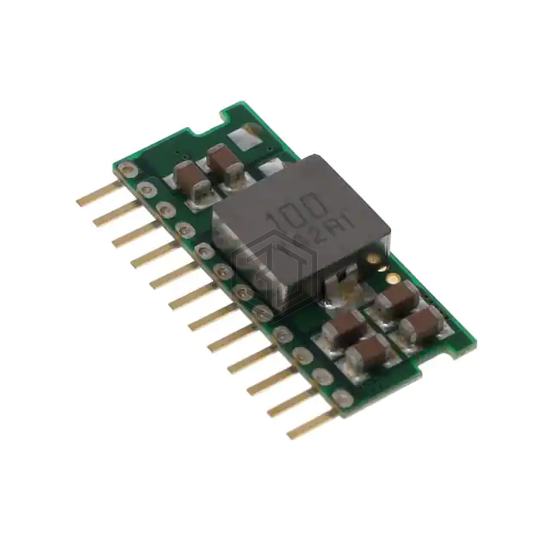

K78L05-3AR3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER 5V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 12-SIP Module, current - output (max) 3A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 93% |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module |
| Size / Dimension | 1.20" L x 0.23" W x 0.49" H (30.6mm x 5.8mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for K78L05-3AR3 and get a quote within 24 hours.
