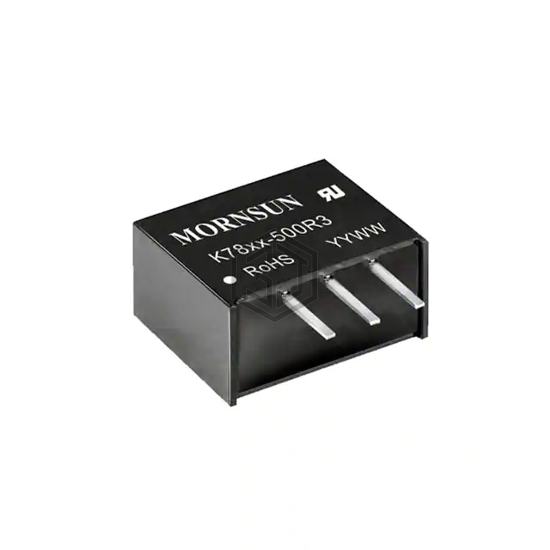

DC DC CONVERTER +/-12V 7.8W
K7812-500R3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER +/-12V 7.8W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 3-SIP Module, current - output (max) 500mA.
In Stock: 7,236
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Linear Regulator Replacement |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V, 15V |
| Voltage - Input (Max) | 24V, 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 7.8 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 94% |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus |
| Standard Number | - |
Submit your RFQ for K7812-500R3 and get a quote within 24 hours.
