DC DC CONVERTER +/-9V 6.3W

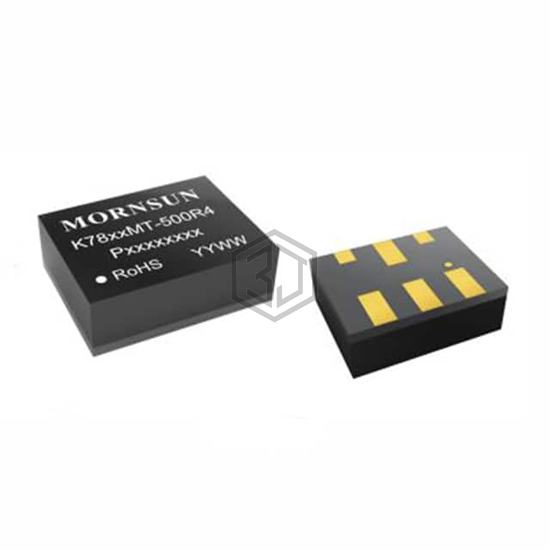

K7809MT-500R4 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER +/-9V 6.3W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 6-SMD Module, current - output (max) 500mA, 200mA.
In Stock: 2,246
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V, 12V |
| Voltage - Input (Max) | 27V, 36V |
| Voltage - Output 1 | 9V, -9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA, 200mA |
| Power (Watts) | 6.3 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 92% |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for K7809MT-500R4 and get a quote within 24 hours.
