DC DC CONVERTER +/-3.3V 2.6W

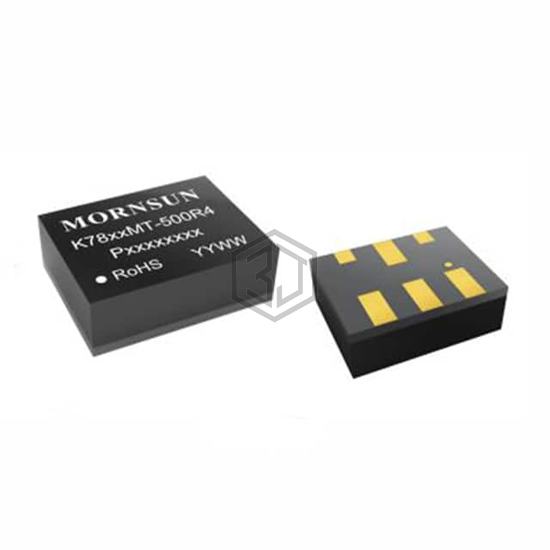

K7803MT-500R4 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER +/-3.3V 2.6W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 6-SMD Module, current - output (max) 500mA, 300mA.
In Stock: 8,338
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V, 7V |
| Voltage - Input (Max) | 36V, 32V |
| Voltage - Output 1 | 3.3V, -3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA, 300mA |
| Power (Watts) | 2.6 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 89% |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
