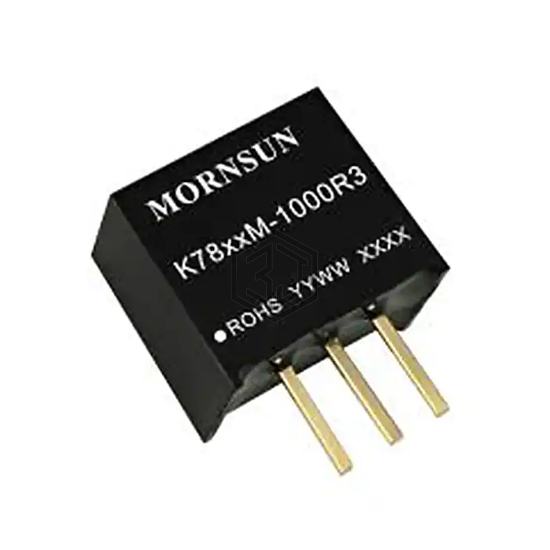

DC DC CONVERTER 3.3V 3.3W
K7803M-1000R3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER 3.3V 3.3W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 3-SIP Module, current - output (max) 1A.
In Stock: 3,572
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 3.3 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 90% |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for K7803M-1000R3 and get a quote within 24 hours.
