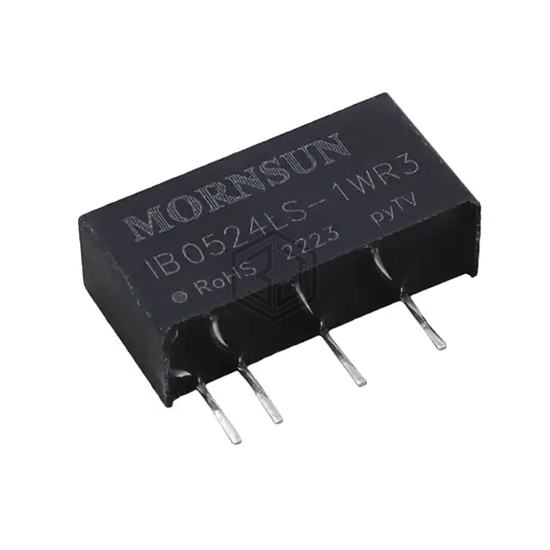

DC DC CONVERTER 24V 984MW
IB0524LS-1WR3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER 24V 984MW. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 7-SIP Module, 4 Leads, current - output (max) 41mA.
In Stock: 75
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 41mA |
| Power (Watts) | 984 mW |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 73% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, UKCA |
| Standard Number | 62368-1 |
Submit your RFQ for IB0524LS-1WR3 and get a quote within 24 hours.
