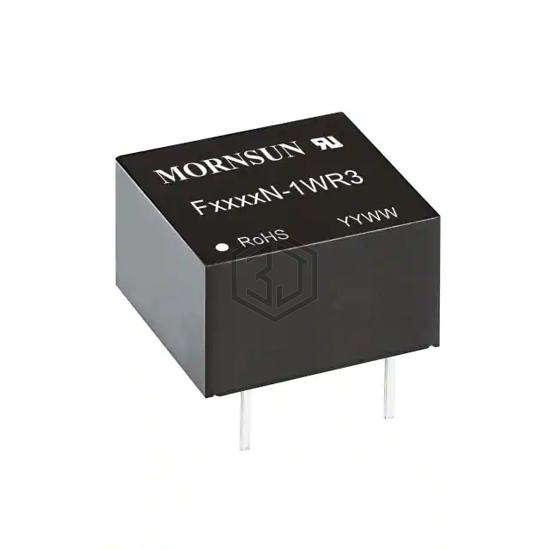

DC DC CONVERTER 5V 1W
F1505N-1WR3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER 5V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 7-DIP Module, 4 Leads, current - output (max) 200mA.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module, 4 Leads |
| Size / Dimension | 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for F1505N-1WR3 and get a quote within 24 hours.
