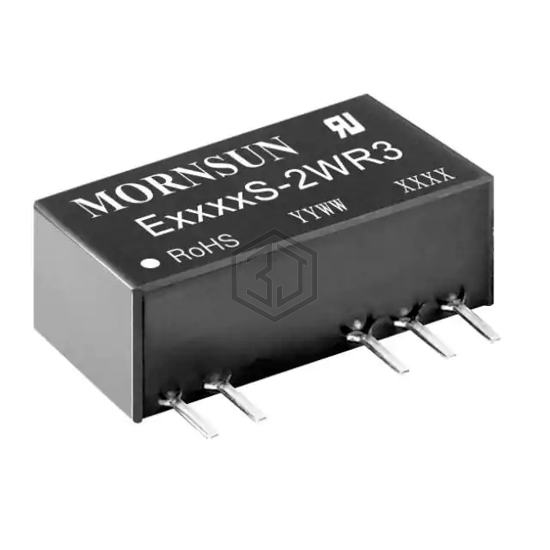

DC DC CONVERTER +/-24V 2W
E1224S-2WR3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER +/-24V 2W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 7-SIP Module, 5 Leads, current - output (max) 42mA, 42mA.
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | -24V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 42mA, 42mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 83% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, UL |
| Standard Number | 62368-1 |
Submit your RFQ for E1224S-2WR3 and get a quote within 24 hours.
