DC DC CONVERTER +/-5V 1W

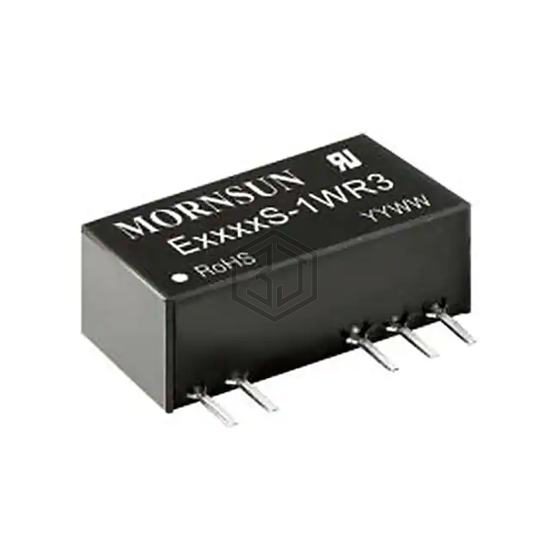

E0505D-1WR3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER +/-5V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 14-DIP Module, 6 Leads, current - output (max) 100mA, 100mA.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module, 6 Leads |
| Size / Dimension | 0.79" L x 0.39" W x 0.28" H (20.0mm x 10.0mm x 7.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for E0505D-1WR3 and get a quote within 24 hours.
