DC DC CONVERTER 0.6-6V

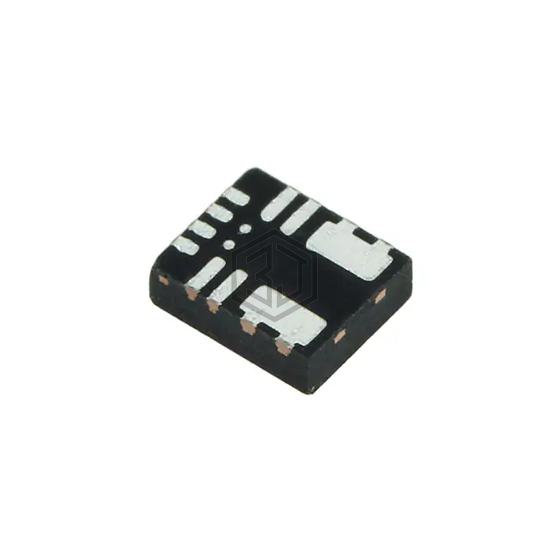

MPM3810AGQB-AEC1-Z is a DC DC Converters manufactured by Monolithic Power Systems Inc.. DC DC CONVERTER 0.6-6V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-PowerVFQFN Module, current - output (max) 1.2A.
In Stock: 1,525
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.6V |
| Voltage - Input (Max) | 6V |
| Voltage - Output 1 | 0.6 ~ 6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.2A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerVFQFN Module |
| Size / Dimension | 0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm) |
| Supplier Device Package | 12-QFN (3x2.5) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for MPM3810AGQB-AEC1-Z and get a quote within 24 hours.
