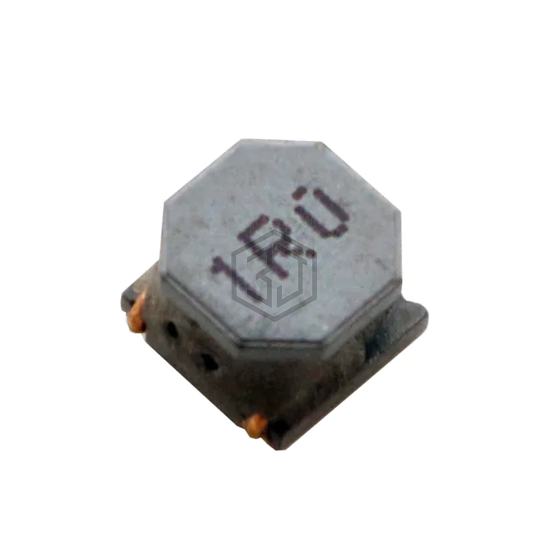

FIXED IND 4.7UH 2.6A 63 MOHM SMD
MPL-SE4030-4R7 is a Fixed Inductors manufactured by Monolithic Power Systems Inc.. FIXED IND 4.7UH 2.6A 63 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, 2 Lead, current rating (amps) 2.6 A.
In Stock: 2,131
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | - |
| Current Rating (Amps) | 2.6 A |
| Current - Saturation (Isat) | 3.7A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 63mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 2 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for MPL-SE4030-4R7 and get a quote within 24 hours.
