FIXED IND 2.2UH 2.5A 92 MOHM SMD

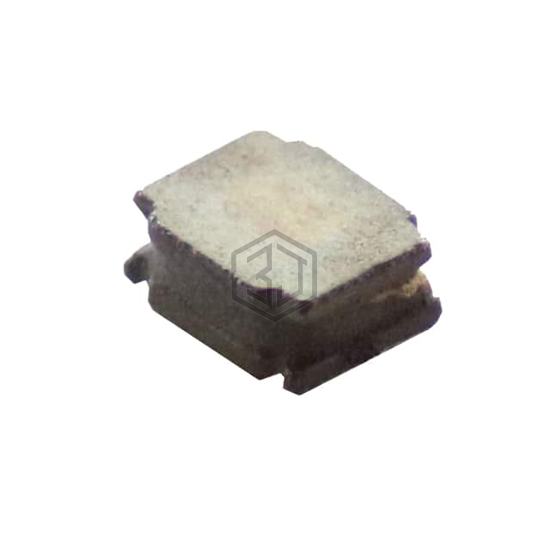

MPL-SE2512-2R2 is a Fixed Inductors manufactured by Monolithic Power Systems Inc.. FIXED IND 2.2UH 2.5A 92 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, 2 Lead, current rating (amps) 2.5 A.
In Stock: 365
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | - |
| Current Rating (Amps) | 2.5 A |
| Current - Saturation (Isat) | 2.7A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 72mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 2 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for MPL-SE2512-2R2 and get a quote within 24 hours.
