FIXED IND 3.3UH 16A 5.5 MOHM SMD

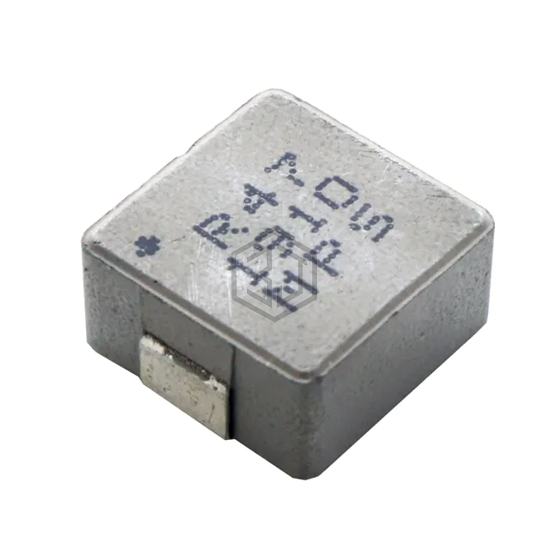

MPL-AY1265-3R3 is a Fixed Inductors manufactured by Monolithic Power Systems Inc.. FIXED IND 3.3UH 16A 5.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case 2-SMD, J-Lead, current rating (amps) 16 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | - |
| Current Rating (Amps) | 16 A |
| Current - Saturation (Isat) | 25A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for MPL-AY1265-3R3 and get a quote within 24 hours.
