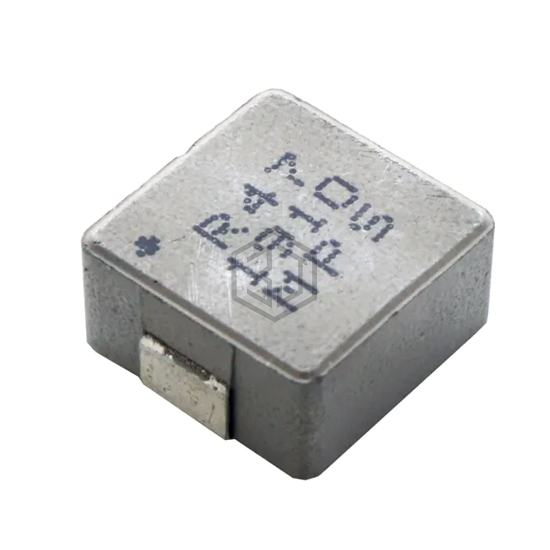

FIXED IND 22UH 7A 31.4 MOHM SMD
MPL-AY1265-220 is a Fixed Inductors manufactured by Monolithic Power Systems Inc.. FIXED IND 22UH 7A 31.4 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case 2-SMD, J-Lead, current rating (amps) 7 A.
In Stock: 2,715
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | - |
| Current Rating (Amps) | 7 A |
| Current - Saturation (Isat) | 9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 31.4mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for MPL-AY1265-220 and get a quote within 24 hours.
