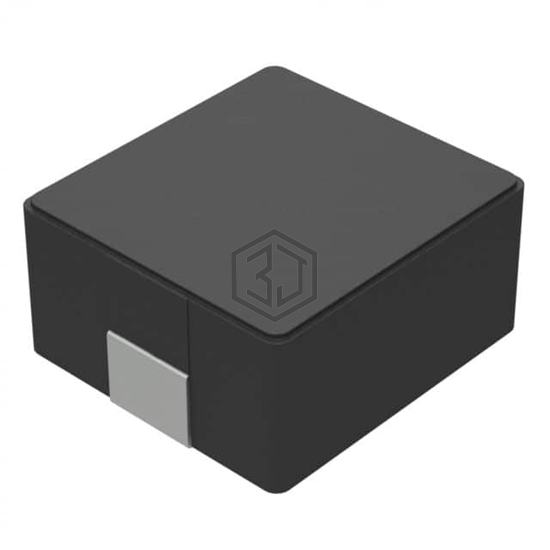

FIXED IND 6.8UH 8.5A 16 MOHM SMD
MPL-AL6060-6R8 is a Fixed Inductors manufactured by Monolithic Power Systems Inc.. FIXED IND 6.8UH 8.5A 16 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case 2-SMD, current rating (amps) 8.5 A.
In Stock: 416
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | - |
| Current Rating (Amps) | 8.5 A |
| Current - Saturation (Isat) | 8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 16mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.252" W (6.60mm x 6.40mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for MPL-AL6060-6R8 and get a quote within 24 hours.
