FIXED IND 1UH 11.2A 6.5 MOHM SMD

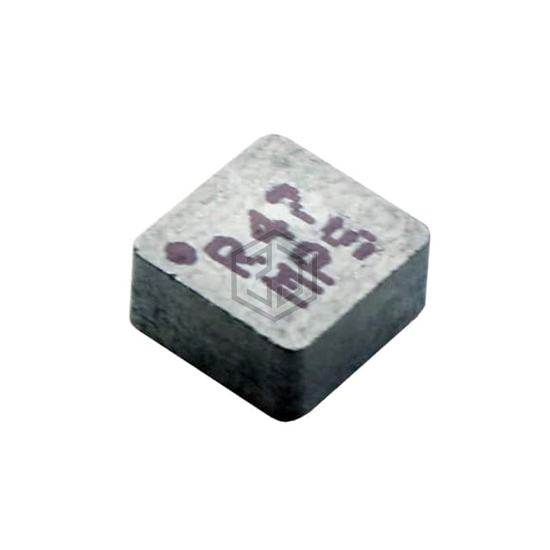

MPL-AL5030-1R0 is a Fixed Inductors manufactured by Monolithic Power Systems Inc.. FIXED IND 1UH 11.2A 6.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case 2-SMD, current rating (amps) 11.2 A.
In Stock: 1,038
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | - |
| Current Rating (Amps) | 11.2 A |
| Current - Saturation (Isat) | 16A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | - |
| Size / Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for MPL-AL5030-1R0 and get a quote within 24 hours.
